When used in conjunction with a cam washer, it enables tactile positioning and automatic return.
Precise Positioning Function
Smooth Auto-Return Feel
Enhanced Operating Experience
Durable and Easy to Assemble
Mengpeng makes controlling shafts effortless, unlocking limitless application possibilities.
Focusing on carbon steel shaft gaskets, Mengpeng makes shaft control a breeze, helping customers expand into more innovative application areas.
| Parameter | pecification |
| Outer Diameter (OD) | 5.5–10 mm |
| Inner Diameter (ID) | 3.02–8.03 mm |
| Thickness | 1.0–1.5 mm |
| Material | 65Mn / SK5 / SK7 |
| Hardness (HRC) | 43–50 |
| Surface Treatment | Surface Treatment |
| Function | Used in conjunction with a cam washer to achieve a tactile feel for positioning and automatic return. |
Spacer washers are widely used in aerospace, medical equipment, machinery, consumer electronics, furniture and home appliances, automotive, and other industries.
With 18 years in the shaft components industry, Mengpeng covers 80% of market demand and serves over 800 clients, including renowned brands like Huawei, Lenovo, Mindray, and Volkswagen.
Offers seven major categories of shaft washers, T-shaped shafts, and standard nuts, with a total of 1,700 specifications to meet diverse industry needs.
Washer tolerances are accurate to 0.03–0.05mm. Annual production exceeds 600 million pcs, with a daily output of 3 million pcs. Large stock ensures fast order fulfillment.
Sufficient inventory and standard parts support clients in accelerating new product development, reducing time and cost.
We provide comprehensive customization services for materials, dimensions, tolerances, and surface treatments to meet the high-standard requirements of industries such as consumer electronics, medical devices, and automotive.
With a stock of 90 million standard parts, we support same-day order placement and next-day delivery, ensuring smooth production schedules and minimizing waiting times for our customers.
We offer product selection guidance, process optimization, installation assistance, and application solutions to help customers improve R&D efficiency and reduce production risks.
Washer tolerances can be controlled within 0.03–0.05mm (Higher precision can be achieved at 0.01-0.02mm.), supported by a complete inspection system to ensure every batch of products is stable, reliable, and compliant with industry standards.

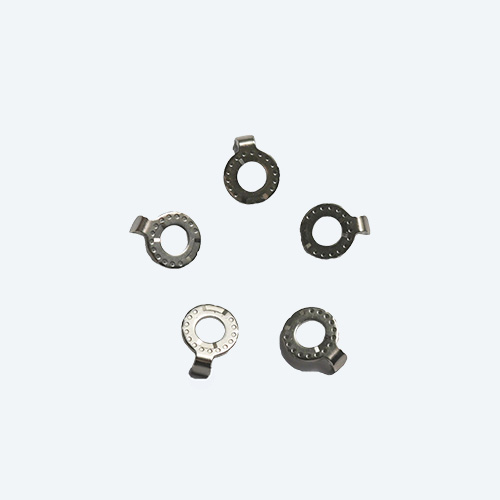

A Concave Wheel Washer is a precision metal component with a curved or recessed surface designed to work in combination with a Cam Gasket. Together, they create a precise positioning and automatic return mechanism, providing a smooth, controlled “click” or tactile feel during operation. This structure is widely used in rotary adjustment systems, control knobs, and mechanical linkages requiring accurate alignment.
When paired with a Cam Gasket, the Concave Wheel Washer plays a key role in achieving positioning and automatic return. The concave surface interacts with the cam structure to produce stable frictional resistance, enabling smooth rotation, precise positioning, and a self-resetting feel after movement. This combination enhances both functionality and user tactile experience.
The washer is made from high-strength spring steel materials such as 65Mn, SK5, and SK7, which provide superior elasticity, toughness, and resistance to deformation.
Hardness (HRC): 43 – 50
This ensures excellent wear resistance and stable performance over prolonged use.
The Concave Wheel Washer is available in multiple dimensions to meet different application needs:
Inner Diameter (ID): 3.02 – 8.03 mm
Outer Diameter (OD): 5.5 – 10 mm
Thickness: 1.0 – 1.5 mm
These precise specifications ensure compatibility with various cam systems and rotational components.
To enhance durability and resistance to corrosion, the Concave Wheel Washer can undergo multiple surface treatments, including:
Environmental Nickel Plating
Chemical Nickel Plating
Black Oxide Treatment
Zinc-Nickel Alloy Coating
These finishes improve both appearance and performance, ensuring long-lasting stability in demanding mechanical environments.
