In many hinge systems, the rotating component directly contacts metal parts during repeated opening and closing movements. Without proper protection, continuous friction can cause surface wear, unstable torque, increased noise, and reduced service life. This problem becomes more serious when the rotating body has insufficient hardness or poor wear resistance.
A double sided friction Hook Washer provides an effective solution by creating a dedicated friction interface between the hinge components. Compared with traditional single-sided friction Hook Washers, this design improves assembly efficiency, protects the hinge body, and provides more stable torque performance with fewer components.
In this article, we will explain the function, structural features, manufacturing requirements, material selection, and application considerations of double sided friction Hook Washers for precision hinge systems.
A double sided friction hook washer is a specially designed hinge washer with friction surfaces on both sides and a hook-shaped positioning structure. It is commonly used inside torque hinges to improve wear resistance, maintain stable friction, and simplify hinge assembly.
Unlike a standard flat washer or single-sided friction washer, the double-sided design allows both surfaces of the washer to participate in friction control. This helps distribute contact pressure more evenly and reduces direct wear on the hinge rotating body.
Why Use a Double Sided Friction Hook Washer?
1. Protects the Hinge Rotating Body from Wear
During hinge operation, repeated rotation creates continuous friction between moving parts. If the rotating body material has lower hardness, direct contact can gradually damage the surface and cause torque reduction.
The friction hook washer acts as a wear-resistant protective layer between components. It absorbs friction during operation, reducing damage to expensive hinge parts and extending the overall hinge lifespan.
2. Provides More Stable Torque Performance
Stable hinge torque depends on consistent friction conditions. A double-sided friction washer provides a larger and more balanced friction interface, helping maintain smooth opening and closing performance over thousands of operating cycles.
Compared with ordinary metal contact structures, it can reduce torque fluctuation caused by uneven wear and improve the user experience of laptops, monitors, tablets, and other rotating devices.
3. Simplifies Assembly and Improves Production Efficiency
In some hinge designs, using multiple single-sided washers may increase the number of assembly steps and create positioning difficulties. This can lead to higher labor costs and inconsistent assembly quality.
A double sided friction hook washer integrates multiple functions into one component, reducing assembly complexity while improving production efficiency and consistency.
Structural Features of Double Sided Friction Hook Washer
The structure of a double sided friction hook washer is designed according to the requirements of torque control hinges.
Its typical features include:

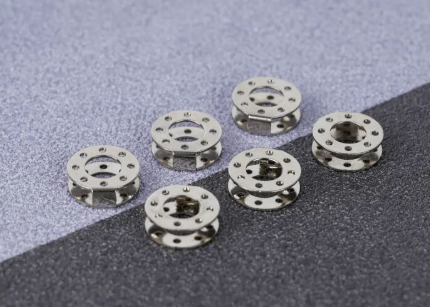

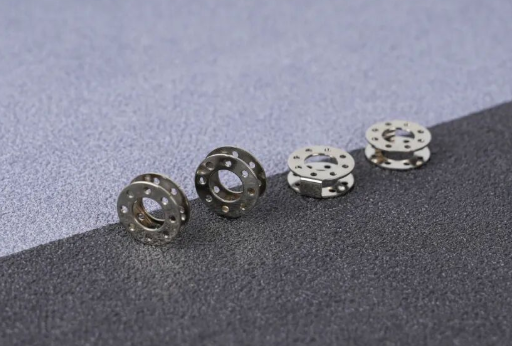

U-shaped structure: The washer body consists of two circular friction sections connected by a hook-shaped positioning ear.
Double friction surfaces: Both sides provide friction contact, improving torque stability and wear resistance.
Oil storage points: Surface grooves or oil pockets can store lubricant to reduce noise and improve smoothness.
Precision inner hole: Ensures accurate matching with the hinge shaft.
Key Manufacturing Control Points
Because the double sided friction hook washer directly affects hinge performance, strict dimensional control is required during manufacturing.
Inner hole tolerance: Controlled within ±0.05 mm to ensure accurate shaft matching and prevent looseness.
U-shaped bending accuracy: Controlled within ±0.05 mm to guarantee proper assembly positioning.
Hook width accuracy: Maintained within ±0.03 mm to ensure consistent installation performance.
Flatness control: The two outer friction surfaces require high flatness to maintain smooth rotation.
Bending quality: No cracks or pressing marks are allowed, preventing hook failure during repeated operation.
Material Selection and Manufacturing Process
The performance of a double sided friction hook washer depends greatly on material selection and manufacturing accuracy. Since the washer works under continuous friction and repeated loading conditions, the material must provide a good balance of hardness, wear resistance, toughness, and forming performance.
For precision hinge applications, commonly used materials include SK7 spring steel and 65Mn carbon steel. These materials are widely selected because they provide excellent wear resistance while maintaining sufficient elasticity for U-shaped bending and forming processes.
SK7 Steel
SK7 is a high carbon steel material with excellent hardness and wear resistance. It is suitable for applications requiring stable friction performance and long-term durability.
High hardness after heat treatment
Excellent wear resistance during repeated rotation
Good dimensional stability
Suitable for precision stamping applications
65Mn Spring Steel
65Mn is another commonly used material for hinge washers. It offers a good combination of strength, elasticity, and fatigue resistance, making it suitable for high-cycle hinge mechanisms.
Good spring performance
Strong fatigue resistance
Excellent forming capability
Reliable performance in repeated opening and closing operations
Heat Treatment and Surface Finishing
To achieve stable friction performance, the material properties of the washer must be optimized through professional heat treatment. For most double sided friction hook washer applications, hardness is typically controlled within HRC 43-48 to achieve the required balance between wear resistance and structural strength.
Proper heat treatment improves the washer's ability to withstand repeated friction and prevents deformation during long-term hinge operation.
Surface treatment is also an important factor affecting product reliability. Different environments require different anti-corrosion solutions.
| Application Environment | Recommended Surface Treatment |
|---|
| Indoor normal environment | Nickel plating or standard protective coating |
| High humidity or higher temperature environment | Chemical nickel, black zinc, zinc alloy coating |
| Outdoor or high corrosion environment | Zinc-nickel alloy or high salt spray resistant treatment |
How to Select the Right Double Sided Friction Hook Washer
Selecting the correct double sided friction hook washer requires consideration of the hinge structure, torque requirements, installation environment, and service conditions. Choosing the wrong specification may result in unstable torque, difficult assembly, or reduced product lifespan.
1. Select the Correct Outer Diameter and Inner Hole Size
The inner hole diameter must accurately match the hinge shaft size. Excessive clearance may cause movement instability, while insufficient clearance can create assembly difficulties or abnormal friction.
The outer diameter should match the available installation space and required friction area. A larger friction surface can provide stronger torque performance, while compact designs may require smaller dimensions.
2. Select Suitable Washer Thickness
Washer thickness directly affects hinge preload and torque output. Engineers should select the appropriate thickness according to the thickness of the hinge rotating body and the required opening force.
Thin washers: Suitable for low torque and compact hinge designs.
Medium thickness washers: Commonly used in laptops, tablets, and display hinges.
Thicker washers: Suitable for higher load applications requiring stronger friction force.
3. Consider the Operating Environment
The working environment directly influences material and surface treatment selection. For indoor electronic products, standard surface protection may be sufficient. However, automotive and outdoor applications require stronger corrosion resistance to maintain long-term reliability.
Applications of Double Sided Friction Hook Washers
Because of their excellent friction control and structural protection capabilities, double sided friction hook washers are widely used in various precision hinge systems.
Laptop Hinges: Protect rotating components and maintain smooth screen opening and closing.
Tablet and Convertible Device Hinges: Provide stable torque for multiple-angle positioning.
Monitor Stands: Improve support strength and prevent unwanted movement.
Automotive Displays: Provide durability under vibration and frequent adjustment conditions.
Industrial Equipment Hinges: Improve service life in high-cycle mechanical structures.
Why Choose Mengpeng Parts for Double Sided Friction Hook Washers?
As a professional manufacturer of precision hinge components, Mengpeng Parts focuses on the development and production of double sided friction hook washers, friction washers, hook washers, torque washers, and customized metal stamping parts. With deep experience in precision stamping technology, we help customers achieve reliable torque control solutions for different hinge applications.
Unlike standard washers, hinge friction components require strict control of dimensions, material properties, and surface quality. A small deviation in thickness, flatness, or bending accuracy can directly affect hinge torque, assembly performance, and product lifespan.
Precision Manufacturing Capability
Mengpeng Parts applies precision stamping processes and strict quality control methods to ensure consistent performance of every washer. Key manufacturing parameters such as inner hole tolerance, bending size, flatness, and surface quality are carefully controlled according to customer requirements.
Accurate dimensional control: Ensures proper matching with hinge shafts and rotating structures.
Stable bending quality: Prevents cracks, deformation, and hook failure during operation.
Consistent thickness control: Helps maintain stable torque performance in mass production.
Reliable surface treatment: Improves corrosion resistance and service life.
Customized Solutions for Different Hinge Designs
Different hinge structures require different washer dimensions and performance characteristics. Mengpeng Parts provides customized double sided friction hook washer solutions based on customers' drawings, samples, and application requirements.
Customization options include:
Customized inner hole diameter and outer diameter
Customized washer thickness according to torque requirements
Different materials including SK7, 65Mn, and other spring steel options
Customized hook structure and bending dimensions
Different surface treatments according to environmental requirements
Double Sided Friction Hook Washer vs Single Sided Friction Hook Washer
When designing a torque hinge, engineers may choose between a single-sided friction hook washer and a double-sided friction hook washer. The best choice depends on the required torque performance, assembly method, and structural requirements.
| Feature | Single Sided Friction Hook Washer | Double Sided Friction Hook Washer |
|---|
| Friction Surface | One side friction contact | Both sides provide friction control |
| Assembly Structure | May require additional matching washers | Integrates multiple functions into one component |
| Torque Stability | Suitable for general torque requirements | Better stability for high-cycle applications |
| Assembly Efficiency | More components may increase assembly steps | Simplifies assembly and improves production efficiency |
Conclusion: A Small Washer Makes a Big Difference in Hinge Performance
Although a double sided friction hook washer is a small component inside a hinge system, its influence on product performance is significant. By protecting the hinge rotating body, improving friction stability, reducing assembly complexity, and extending service life, it provides an effective solution for modern precision hinge designs.
For laptops, tablets, monitors, automotive displays, and industrial equipment, selecting the right friction hook washer can improve user experience and ensure reliable operation throughout the product lifecycle.
With professional precision stamping capability and customized manufacturing support, Mengpeng Parts provides high-quality hinge washers and torque control components for global customers requiring stable performance and reliable quality.
