How Does a Conical Spring Washer Work?

A conical Spring Washer is a type of spring washer designed with a cone-shaped profile. When compressed during assembly, the washer creates elastic force that can help maintain pressure between mechanical components.

Because of its conical shape, the washer can provide controlled spring action while taking up limited installation space in a fastening assembly.

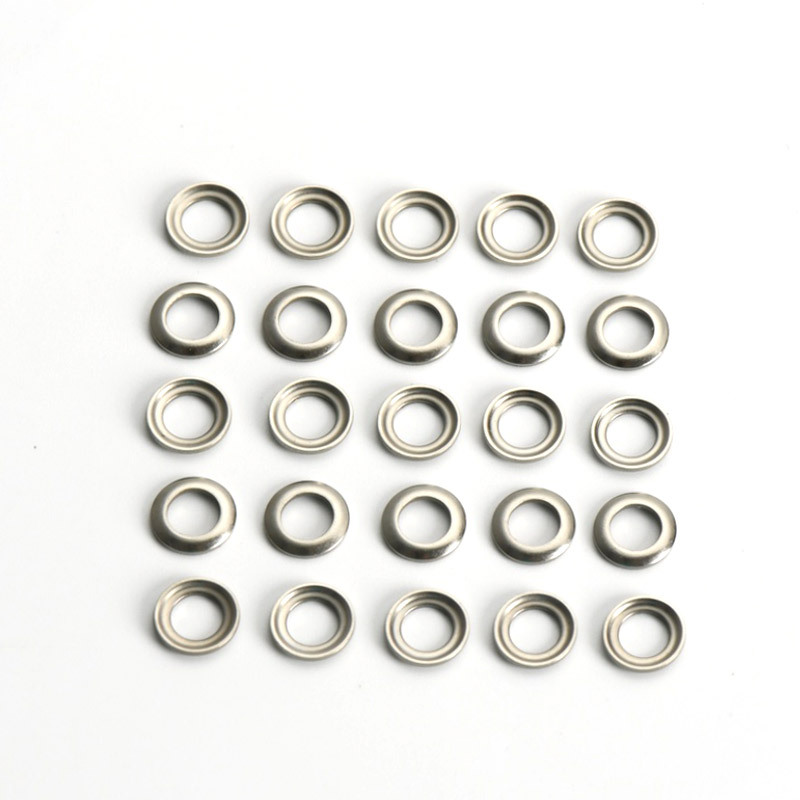

What Is a Conical Spring Washer?

A conical spring washer has a tapered, cone-like shape instead of a completely flat profile. When a fastening force is applied, the washer is compressed and produces an elastic reaction force.

This design allows the washer to support preload within an assembly and accommodate small changes in the connection during operation.

How Does a conical spring washer Create Spring Force?

During installation, the conical spring washer is placed within a fastening assembly and compressed as the bolt or nut is tightened. As the washer changes shape under load, it stores elastic energy.

This stored energy creates a reaction force that helps maintain contact pressure between the connected components. The performance of the washer depends on factors such as its dimensions, material, thickness, and compression range.

conical spring washers and Cone Washers

Cone washers are commonly associated with washer designs that use a conical profile to provide elastic support under compression. Different conical washer designs can offer different load and deflection characteristics depending on the requirements of the mechanical assembly.

Selecting the appropriate washer structure is important when preload, available space, and operating conditions need to be considered together.

Where Are Conical Spring Washers Used?

Conical spring washers can be used in mechanical assemblies where controlled elastic force is required. They may be combined with bolts, nuts, flat washers, and other fastening components depending on the structure of the assembly.

For more specialized mechanical systems, washer dimensions and spring characteristics can also be designed around the specific requirements of the application.

Custom Spring Washer Solutions for Mechanical Assemblies

At Mengpeng Parts, spring washers are used in precision mechanical component assemblies and can be developed according to different structural and application requirements.

Explore our Spring Washer products and learn more about washer solutions for customized mechanical assemblies.
