Concave Washer

The Concave Wheel Gasket is a precision‑engineered component designed to ensure a secure and stable fit between wheels and hubs. Its concave structure provides excellent load distribution, reduces vibration, and prevents loosening, making it ideal for automotive, industrial, and mechanical applications.

Product Images & Functions

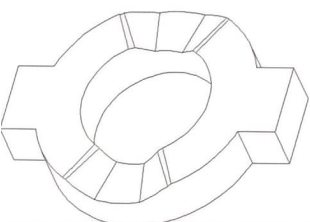

Structure & Preload Function | Provides stable elastic preload, compensates axial clearance, maintains consistent torque

Application | Used in shafts, hinges, rotating assemblies to improve stability and service life

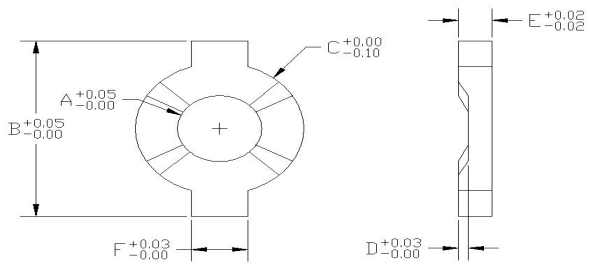

Technical Specifications

Problems It Solves

• Eliminate loose fasteners caused by long-term vibration and repeated rotation

• Fix unstable torque and unsmooth rotation of hinges and shafts

• Make up for assembly gaps and wear clearance during equipment operation

• Reduce abnormal noise generated by friction and impact between parts

• Alleviate excessive wear of rotating shafts and matching components

• Avoid assembly failure and performance degradation due to tolerance deviation

What is a Concave Washer?

Concave Washers are precision metal components designed to provide stable preload, absorb vibration, reduce wear, and improve rotational stability in mechanical assemblies. Compared with ordinary flat washers, a concave washer features a curved or dished structure that generates elastic support during compression.

This design helps maintain consistent torque, compensates for axial clearance, and improves the service life of rotating parts.

Key Functions & Purposes

• Provides stable axial preload for rotating shafts and hinges

• Absorbs vibration and prevents fastener loosening under dynamic loads

• Improves rotational smoothness and torque consistency

• Compensates assembly tolerance and running wear

• Extends service life of shafts, hinges and rotating components

• Suitable for high‑speed and repeated motion applications

Where It Is Used (Applications)

• Automotive Industry: Seat hinges, door hinges, steering systems, transmission assemblies

• Industrial Machinery: Motors, pumps, gear systems, industrial hinges, automation equipment

• Electronics & Precision Equipment: Small motors, precision rotating devices, electronic assemblies

• Furniture & Hardware: Adjustable hinges, folding structures, rotating brackets

Advantages & Benefits

• Improve mechanical stability: Continuous elastic pressure keeps fastening reliable

• Reduce shaft wear: Even load distribution lowers friction concentration

• Strong vibration resistance: Absorbs shock and maintains stable clamping force

• Long service life: High‑strength spring steel with excellent fatigue resistance

• Customizable: Sizes, materials and surface treatments can be customized

Key Features

• Stable axial preload & anti‑loosening performance

• High fatigue resistance and durability

• Improve rotation smoothness and stability

• Compensate tolerance and wear automatically

• Support custom sizes, materials and surface treatment

Why Choose Mengpeng Concave Washers?

• Over 10 years of precision hardware manufacturing experience

• ISO‑certified production management system

• High precision stamping and forming technology

• Support custom dimensions and drawings

• Strict quality inspection before shipment

• Fast mass production & stable consistency

FAQ

What is a concave washer used for?
Provides elastic preload, reduces vibration, improves rotational smoothness, extends service life of shafts and fastening systems.

What is the difference between a flat washer and a concave washer?
A flat washer distributes load; a concave washer also provides elasticity and preload compensation.

Can concave washers reduce vibration?
Yes. The curved structure absorbs vibration and maintains stable clamping force.

What materials are available?
65Mn, SK5, SK7, stainless steel, carbon steel.

Do you support custom concave washers?
Yes. OEM & ODM based on drawings, dimensions and requirements.
