Hook Washer & Friction Washer for Precision Hinge Torque Control
When two connected components need to rotate smoothly while maintaining a controlled opening angle, a precision hinge washer becomes an essential structural component.
Mengpeng Parts manufactures high-quality Hook Washers, friction washers, and hinge washers designed for rotary hinge systems. These components help improve torque stability, prevent washer rotation, control hinge angles, and extend the service life of mechanical assemblies.
Our hook friction washers are widely used in laptop hinges, monitor hinges, automotive interior mechanisms, medical equipment, and other precision rotating structures. Customized sizes, materials, surface treatments, and special designs are available according to customer requirements.
Product Advantages
Precision stamping structure with stable dimensional accuracy
Anti-rotation hook design prevents washer movement during hinge operation
Friction surface design improves torque consistency
High-strength spring steel materials provide excellent fatigue resistance
Suitable for mass production and customized OEM applications

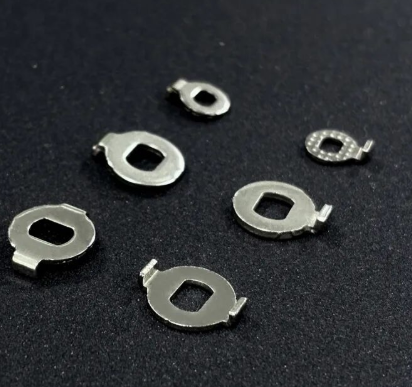

A hook washer is a specially designed hinge washer with one or two bent stopper hooks on the outer edge. During hinge rotation, the hook structure connects with the hinge bracket to provide mechanical positioning and rotation limitation.
Unlike ordinary Flat Washers, hook washers provide additional anti-rotation performance. They prevent the washer from following the shaft rotation, helping maintain stable friction force and consistent hinge torque.
In many compact hinge systems, hook washers are combined with friction washers to achieve both torque control and angle limitation functions.
Working Principle of Hook Friction Washer
1. Anti-Rotation Hook Structure
The bent hook creates a fixed connection between the washer and hinge bracket. When the shaft rotates, the washer remains positioned instead of rotating together with the shaft, reducing unnecessary friction loss and torque attenuation.
2. Friction Surface Design
The contact surface of the washer can be processed with special patterns or textures to optimize friction performance. This design improves torque stability, reduces stick-slip vibration, and provides smoother opening and closing operation.
3. Precision Thickness Control
The washer thickness directly affects the axial pressure inside the hinge assembly. Accurate thickness control helps engineers achieve the required torque value without additional adjustment components.
Key Quality Control Points
| Inspection Item | Control Requirement | Purpose |
|---|
| Inner Hole Dimension | Tolerance within ±0.02mm | Ensure accurate shaft matching and stable assembly |
| Outer Diameter Accuracy | Controlled within ±0.03mm | Avoid installation interference and radial movement |
| Flatness | ≤0.02mm | Improve hinge durability and prevent uneven wear |
| Hook Forming Quality | No cracks, deformation or stress marks | Ensure reliable angle limitation during operation |
Friction Washer Technical Specifications
| Parameter | Specification | Application Benefit |
|---|
| Outer Diameter | 6mm - 24mm | Suitable for different hinge structures |
| Inner Diameter | 3mm - 10mm | Compatible with various hinge shaft sizes |
| Thickness | 0.5mm / 0.8mm / 1.0mm / 1.2mm / 1.5mm / 2.0mm | Adjust hinge preload and torque performance |
| Material | 65Mn / SK5 / SK7 Spring Steel | Provide different strength and fatigue resistance options |
| Hardness | HRC43-HRC50 | Balance wear resistance and toughness |
| Tolerance | ±0.02mm ~ ±0.03mm | Ensure consistent batch performance |
Material Selection of Hook Washer & Friction Washer
Mengpeng Parts selects high-performance carbon steel and spring steel materials according to different hinge application requirements. The material selection directly affects washer elasticity, wear resistance, fatigue performance, and long-term torque stability.
| Material | Characteristics | Recommended Applications |
|---|
| 65Mn Spring Steel | Excellent elasticity, good fatigue resistance, stable mechanical performance and cost-effective solution. | Laptop hinges, monitor hinges, consumer electronics and general rotary mechanisms. |
| SK5 High Carbon Steel | High hardness, excellent wear resistance and suitable for high-frequency opening and closing operations. | Automotive hinges, medical equipment, industrial precision hinges. |
| SK7 Carbon Steel | Good toughness and strength, suitable for thin precision stamped components. | Miniature hinges, compact electronic devices and precision structures. |
Surface Treatment Options
Different working environments require different surface protection solutions. Mengpeng Parts provides multiple surface treatment options to improve corrosion resistance and product reliability.
Nickel Plating: Suitable for normal indoor applications with good appearance and corrosion resistance.
Electroless Nickel Plating: Provides uniform coating thickness and better corrosion resistance for humid environments.
Black Nickel Plating: Suitable for appearance-sensitive applications requiring dark surface finishing.
Zinc Nickel Alloy Coating: Provides higher corrosion protection for demanding environments.
Manufacturing Process of Hook Washer
Raw Material Inspection → Precision Stamping → Hook Forming → Deburring → Heat Treatment → Surface Treatment → Flatness Inspection → Dimension Inspection → Quality Testing → Packaging
Through strict manufacturing control, Mengpeng Parts ensures stable dimensions, smooth edges, accurate hook angles, and consistent performance for every production batch.
Applications of Hook Washer & Friction Washer
Hook washers and friction washers are widely used in various rotary hinge systems where controlled movement and stable torque are required.
Laptop and notebook hinge assemblies
Foldable electronic device hinges
LCD monitor and display stand hinges
Automotive interior rotating mechanisms
Medical equipment adjustable joints
Office equipment and industrial rotary structures
Precision mechanical assemblies requiring angle limitation
Hook Washer Selection Guide
Choosing the correct hook washer depends on the hinge structure, operating environment and performance requirements.
1. Select Suitable Dimensions
Confirm the required outer diameter, inner hole size and thickness according to the available installation space and hinge shaft design.
2. Select Proper Material
For general applications, 65Mn provides a balanced solution. For high-cycle operation requiring stronger wear resistance, SK5 or SK7 materials are recommended.
3. Select Surface Treatment
Choose the appropriate coating according to humidity, temperature and corrosion requirements. Higher corrosion resistance treatments are recommended for outdoor or harsh environments.
4. Confirm Hook Structure
Single hook and double hook designs are available according to the required rotation limitation angle and mechanical strength.
Comparison: Standard Washer vs Hook Friction Washer
| Item | Standard Flat Washer | Hook Friction Washer |
|---|
| Anti-Rotation Function | No anti-rotation structure | Hook structure prevents washer movement |
| Torque Stability | Torque may decrease due to washer rotation | Provides stable friction performance |
| Angle Limitation | Requires additional components | Can provide mechanical stopping function |
| Service Life | Suitable for simple applications | Designed for repeated opening and closing cycles |
FAQ About Hook Washer & Friction Washer
What is the difference between a hook washer and a standard washer?
A standard washer mainly distributes pressure and provides spacing. A hook washer adds anti-rotation and angle limitation functions through its specially formed hook structure.
What is the function of a friction washer in a hinge?
A friction washer controls resistance torque between rotating parts, helping the hinge maintain smooth movement and stable holding force.
Can Mengpeng Parts customize hook washers?
Yes. Mengpeng Parts supports OEM and ODM customization including outer diameter, inner hole shape, thickness, hook design, material selection and surface treatment according to customer drawings.
Which materials are commonly used for hinge washers?
Common materials include 65Mn, SK5 and SK7 carbon steel. The final material selection depends on required strength, fatigue resistance and application environment.
What industries use hook friction washers?
A friction washer is a mechanical component designed to create controlled resistance between contact surfaces.
It helps improve stability in rotating or sliding assemblies by reducing unwanted movement and maintaining consistent positioning under load.
How It Works
Friction washers increase contact resistance in an assembly, helping reduce vibration, prevent loosening, and stabilize movement in rotating shaft systems.
| Outer Diameter (OD) | 6 – 24 mm |
| Inner Diameter (ID) | 3.1 – 10.02 mm |
| Thickness | 0.5 – 2.0 mm |
| Material | 65Mn / SK5 / SK7 |
| Hardness | HRC 43 – 50 |
| Surface Treatment | Nickel / Electroless Nickel / Black Oxide / Zinc-Nickel |
Rotating shaft assemblies
Hinge and linkage systems
Mechanical positioning parts
Automotive and industrial equipment
