What Are Wrap-Around Bushings and Wrap-Around Brackets? A Complete Guide to Torque Hinge Components and Selection
When developing a high-quality torque hinge, engineers often focus on the shaft, friction washers, or springs while overlooking two critical components—the wrap-around bushing (also called a rolled bushing) and the wrap-around bracket. Although small in size, these precision metal parts directly influence hinge torque, rotational smoothness, durability, and long-term positioning performance.
From laptop displays and tablet stands to automotive monitors and smart home devices, many modern products rely on these components to achieve stable damping and a premium user experience.
As a professional manufacturer of precision hinge components, Mengpeng Hardware supplies a complete range of custom metal parts, including friction washers, Flat Washers, Spring Washers, Hook Washers, shafts, and wrap-around hinge components for OEM torque hinge manufacturers. Learn more at https://www.mengpengparts.com/.
What Is a Wrap-Around Bushing?

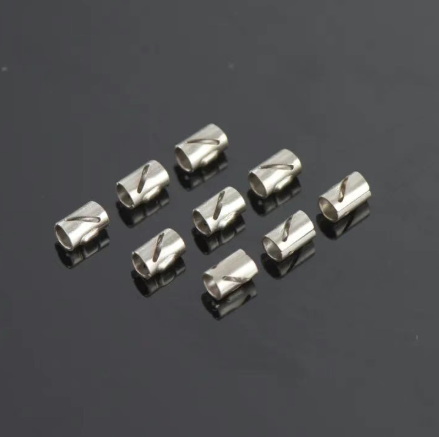

A wrap-around bushing is a thin precision metal sleeve formed by stamping and rolling high-strength spring steel into a cylindrical shape.
Unlike ordinary bushings that primarily provide bearing support, a wrap-around bushing is specifically designed for torque hinges and friction hinges. During assembly, the inner diameter forms an interference fit with the hinge shaft. As the shaft rotates, the elastic deformation of the rolled sleeve generates stable holding force and rotational resistance.
This simple mechanical principle allows the hinge to maintain smooth movement while keeping displays, lids, or covers securely positioned.
What Is a Wrap-Around Bracket?
A wrap-around bracket works on the same interference-fit principle but includes an additional locking tab structure that prevents rotation inside the housing.
Compared with standard rolled bushings, wrap-around brackets provide:
Higher structural strength
Better anti-rotation performance
Greater torque capacity
Improved positioning stability
Longer service life under heavy loads
For products requiring higher damping torque or long-term load-bearing performance, engineers often choose wrap-around brackets instead of standard bushings.
How Do They Work?
Both components rely on the same operating principle.
The hinge shaft is slightly larger than the inner diameter of the rolled component. During assembly, the wrap-around structure elastically expands, creating continuous radial pressure against the shaft.
As the shaft rotates, this elastic gripping force generates stable friction torque, allowing the hinge to:
Rotate smoothly
Maintain positioning
Prevent sudden movement
Deliver consistent opening and closing feel
Reduce long-term torque decay
This makes wrap-around components one of the most important parts inside modern friction hinge systems.

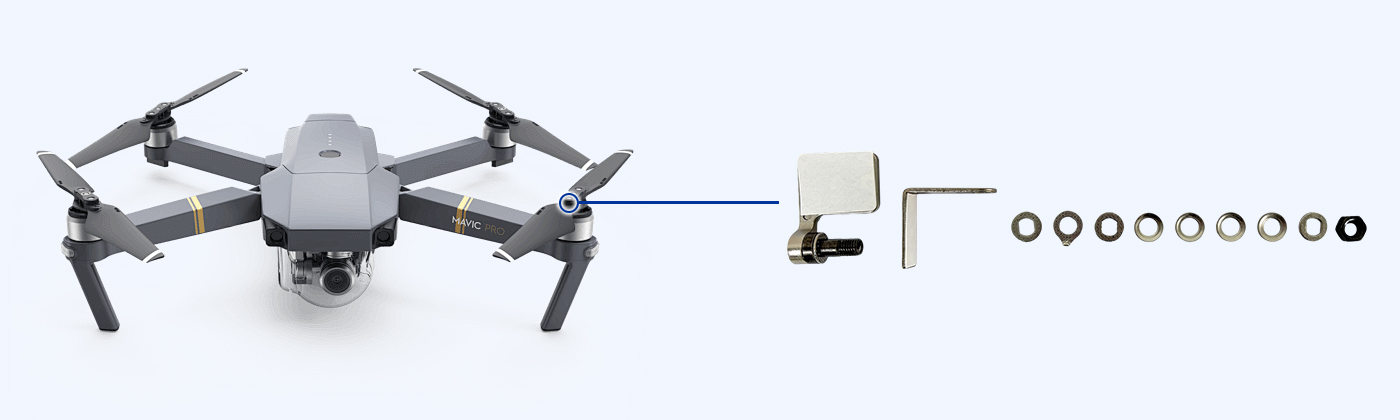

Products That Use Wrap-Around Bushings and Brackets
These precision components are widely used across industries requiring controlled rotational movement.
Typical applications include:
Laptop display hinges
Tablet PC hinges
Foldable notebook computers
Bluetooth headset hinges
POS machine displays
Automotive infotainment screens
Medical equipment covers
Smart home flip covers
Industrial control panels
Portable monitors
LED desk lamps
Camera mounts
Precision electronic instruments
As products become thinner and lighter, compact torque hinge solutions using rolled bushings continue to replace larger traditional hinge mechanisms.
Features of Wrap-Around Bushings
A wrap-around bushing is designed for compact hinge assemblies and lightweight products.
Its main characteristics include:
Thin Stamped Construction
Manufactured using precision stamping and rolling technology.
Raised Contact Points
Small embossed contact points increase friction stability while maintaining smooth rotational movement.
Oil Storage Slot
Special relief slots store lubricant and continuously distribute it during rotation.
Benefits include:
Reduced wear
Lower friction loss
Longer hinge life
Stable torque output
Thickness Range
Normally available from 0.3 mm to 0.6 mm.
Higher torque applications generally require thicker bushings.
Typical Applications
Wrap-around bushings are ideal for:
Small-angle torque hinges
Plastic flip covers
Bluetooth headset hinges
Small electronic devices
Portable instruments
These products require lightweight construction, smooth operation, and relatively low torque without mechanical detents.

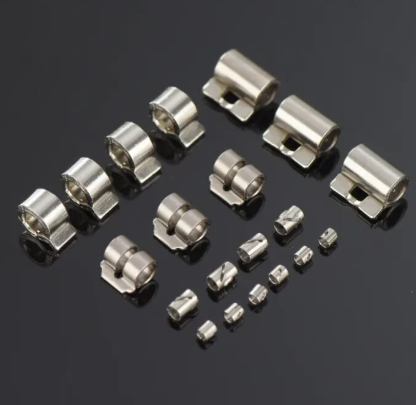

Features of Wrap-Around Brackets
Wrap-around brackets are designed for larger and higher-load torque hinge systems.
Their advantages include:
Integrated Locking Tabs
Special side tabs prevent movement inside aluminum or zinc alloy housings.
Greater Material Thickness
Typical thickness ranges from 0.6 mm to 1.2 mm, providing significantly higher torque capacity.
Multiple Bracket Combinations
Several wrap-around brackets may be assembled together with rolled bushings to create larger damping torque for heavy-duty applications.
Typical Applications
Common uses include:
Large laptop displays
Tablet support stands
Automotive rotating displays
Industrial equipment
Smart home products
Medical devices
These applications require high positioning force, stable damping, and excellent long-term durability.
Critical Quality Control Factors
1. Inner Diameter Accuracy
The inner diameter tolerance should remain within 0.02 mm.
Oversized inner diameters cause:
Loose fitting
Reduced torque
Faster torque decay
Undersized diameters may result in:
Difficult assembly
Excessive friction
Component damage
2. Heat Treatment Hardness
Recommended hardness:
HRC 43–48
Excessive hardness increases cracking risk.
Insufficient hardness reduces elastic gripping force, causing premature torque loss.
Materials and Surface Treatments
Wrap-around bushings and brackets are commonly manufactured from high-strength spring steel materials, including:
65Mn
SK5
SK7
After heat treatment, different surface finishes can be applied according to customer requirements.
Popular coatings include:
Eco-friendly nickel plating
Chemical black nickel
Zinc-nickel alloy
These finishes improve corrosion resistance while maintaining excellent appearance and durability.
How to Choose the Right Wrap-Around Component
Selecting the proper component depends on several engineering factors.
Step 1: Determine Structural Size
Choose the appropriate:
Outer diameter
Inner diameter
Opening width
Material thickness
according to the available installation space and required torque.
Step 2: Select Surface Treatment
Different environments require different corrosion protection.
Indoor dry environments
Eco-friendly nickel plating provides sufficient protection.
Humid or high-temperature environments
Electroless nickel or enhanced corrosion-resistant coatings are recommended.
Outdoor applications
Zinc-nickel alloy or chemical black nickel provides excellent resistance against moisture, oxidation, and corrosion.
Step 3: Match the Product Type
Choose a wrap-around bushing when:
Lightweight construction is required
Small torque is sufficient
Installation space is limited
No anti-rotation feature is needed
Choose a wrap-around bracket when:
Higher torque is required
Aluminum or zinc alloy housings are used
Anti-rotation positioning is necessary
Heavy displays or long-term load holding is required
Complete Torque Hinge Component Solutions
A reliable torque hinge is built from multiple precision components working together.
Besides wrap-around bushings and brackets, manufacturers often combine:
Friction Washers
Flat Washers
Spring Washers
Hook Washers
Shaft Gaskets
Torque Hinge Shafts
Custom Precision Metal Stampings
Mengpeng Hardware specializes in manufacturing these precision components for OEM and ODM customers worldwide. With more than 1,700 standard specifications, custom tooling capabilities, and strict quality control, the company supports manufacturers in consumer electronics, automotive, medical devices, industrial equipment, and smart home industries.
